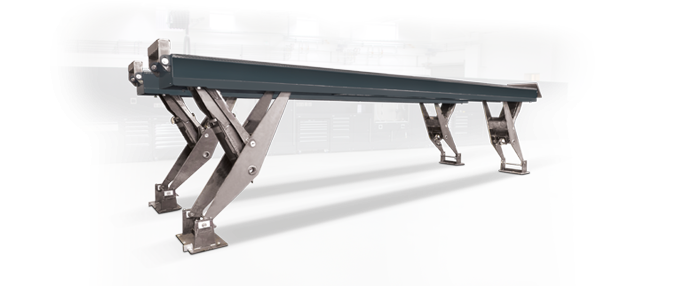

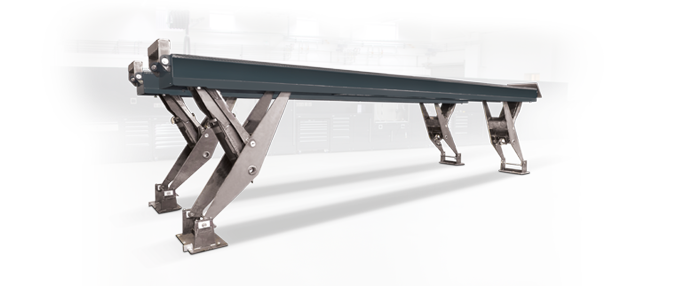

No cross rails or torsion bars between lifting platforms. Maximum accessibility in the working area.
Electronic synchronisation of the platforms, independently from the load distribution.
Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position.
All pivot points made with self lubricating bushings for long life.
Platform surface in ribbed anti-slip steel plate.
| Capacity | Long platforms | Total length | |
| kg | mm (A) | mm (B) | |
| SF8825.6 | 25000 | 6000 | 8700 |
| SF8825.8 | 25000 | 8000 | 10700 |
| SF8825.9 | 25000 | 9000 | 11700 |
| SF8825.10 | 25000 | 10000 | 12700 |
| SF8825.11 | 25000 | 11000 | 13700 |
| SF8835.6 | 35000 | 6000 | 8700 |
| SF8835.8 | 35000 | 8000 | 10700 |
| SF8835.9 | 35000 | 9000 | 11700 |
| SF8835.10 | 35000 | 10000 | 12700 |
| SF8835.11 | 35000 | 11000 | 13700 |
| SF8835.13 | 35000 | 13000 | 15700 |
All 8800 series lifts can be supplied for recessed installation.
RECESSED
The best solution for a rational workshop:
- space saving when lift is raised;
- obstacle free floor space when lift is fully lowered.
| Capacity | Long platforms | |
| kg | mm | |
| SF8825.6I | 25000 | 6000 |
| SF8825.8I | 25000 | 8000 |
| SF8825.9I | 25000 | 9000 |
| SF8825.10I | 25000 | 10000 |
| SF8825.11I | 25000 | 11000 |
| SF8835.6I | 35000 | 6000 |
| SF8835.8I | 35000 | 8000 |
| SF8835.9I | 35000 | 9000 |
| SF8835.10I | 35000 | 10000 |
| SF8835.11I | 35000 | 11000 |
| SF8835.13I | 35000 | 13000 |
|
|
